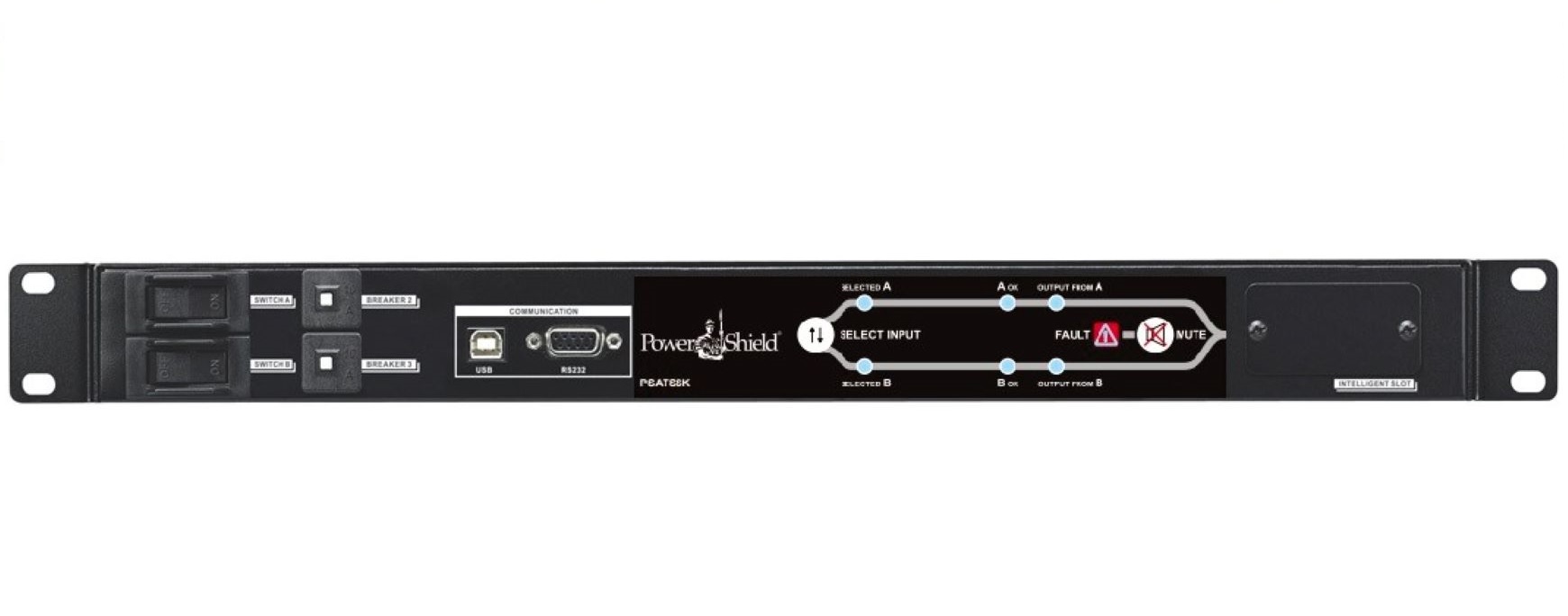

PowerShield ATS 6kVA

SKU PSATS6K Categories ,

Seamless Power Switching with Built-In Redundancy

The PowerShield ATS is designed to ensure continuous power availability by connecting to two independent power sources โ€” a primary and a secondary. In the event of a primary source failure, the ATS automatically transfers the load to the secondary supply, maintaining uninterrupted operation of connected equipment.

More than just a transfer switch, this versatile unit also functions as a Maintenance Bypass Switch (MBS) and a Power Distribution Unit (PDU). With user-selectable input control via the front panel, it enables live UPS maintenance or replacement without disrupting power to the load โ€” ideal for servers and other critical devices with only a single power input.

The PowerShield ATS is a reliable, space-efficient solution for maintaining uptime in mission-critical environments, where power continuity and serviceability are non-negotiable.

RRP $1,900.00

Description

Key features include:

  • Critical load (server) has reliability of two independent power sources .
  • Ideal for ensuring reliable power to critical devices that have only a single power supply
  • User selectable power source from front panel.
  • Dual power supply for redundancy.

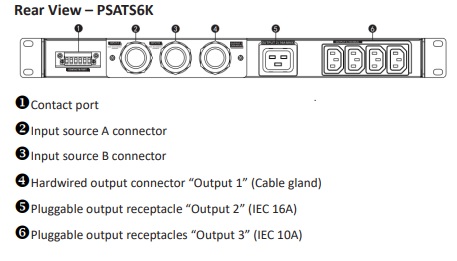

  • Hardwired Input / Hardwired & IEC outputs for load connection flexibility
  • Provides seamless power switch for IT equipment.
  • Highly reliable 19โ€ณ (1RU) rack design to fit into diverse working environment.
  • Built-in USB and RS232.
  • AS400 dry contacts included.
  • SNMP remote monitoring option available.
  • Two year warranty.

Additional information

Weight 5 kg
Dimensions 438 × 330 × 44 mm
VA

Phase

RU

1U

Outlets (PDUs Only)

6

Warranty

2 Years

๐Ÿ“„
PowerShield ATS 3kVA & 6kVA Brochure
421.65 KB | [file_type]

๐Ÿ“„
PowerShield ATS - 3kVA & 6kVA User Manual
589.27 KB | [file_type]
